CSD15571Q2
Manufacturer:
Texas Instruments
Mfr.Part #:
CSD15571Q2
Datasheet:
Description:

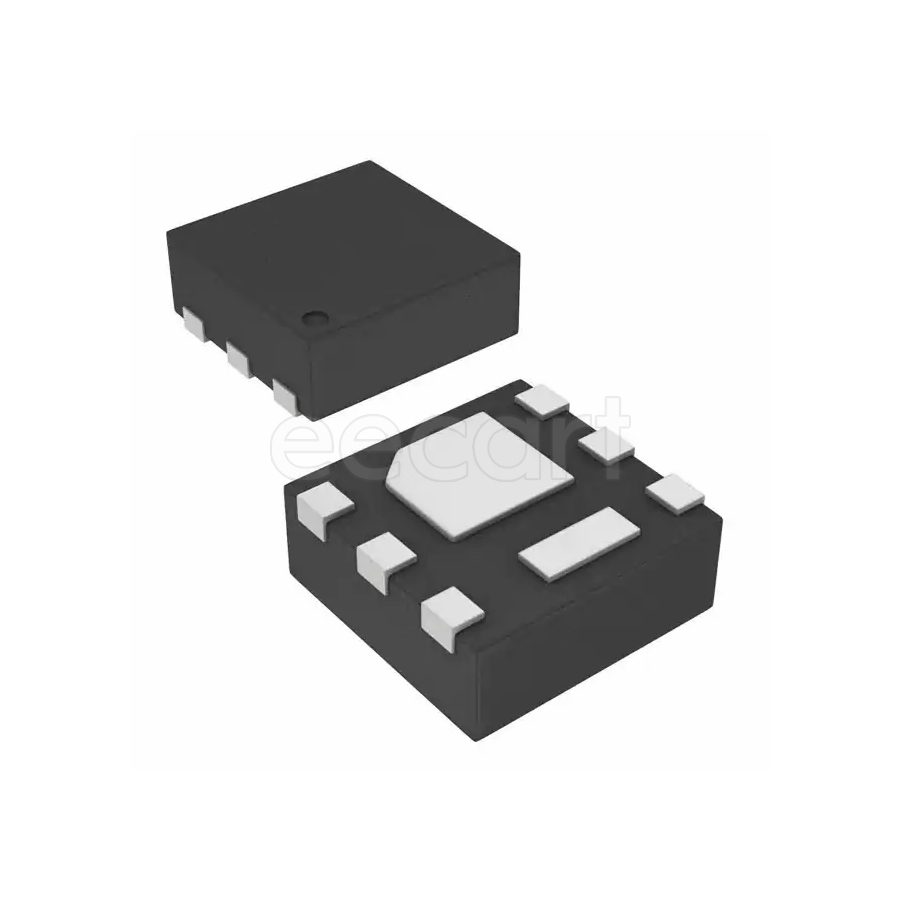

MOSFETs SON-6 SMD/SMT N-Channel number of channels:1 2.5 W 20 V Continuous Drain Current (ID):22 A 5.1 nC
| Parameter | Value |
|---|---|
| Length | 2 mm |
| Width | 2 mm |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 6 |
| Height | 800 µm |
| Packaging | Reel |
| Thickness | 0.75 mm |
| RoHS | Compliant |
| Contact Plating | Tin |
| Number of Elements | 2 |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Max Power Dissipation | 2.5 W |
| Power Dissipation | 2.5 W |
| Number of Channels | 1 |
| Input capacitance | 419 pF |
| Continuous Drain Current (ID) | 22 A |
| Rds On Max | 15 mΩ |
| Drain to Source Voltage (Vdss) | 20 V |
| Turn-On Delay Time | 4.7 ns |
| Turn-Off Delay Time | 9.9 ns |
| Element Configuration | Single |
| Fall Time | 4.1 ns |
| Rise Time | 17.2 ns |
| Gate Charge | 5.1 nC |
| Drain to Source Resistance | 16 mΩ |
| Max Junction Temperature (Tj) | 150 °C |
| Gate to Source Voltage (Vgs) | 20 V |
| Drain to Source Breakdown Voltage (Vds) | 20 V |
| Schedule B | 8541290080 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Gate to Source Threshold Voltage | 1.1 V |
| FET Type(Transistor Polarity) | N-Channel |
